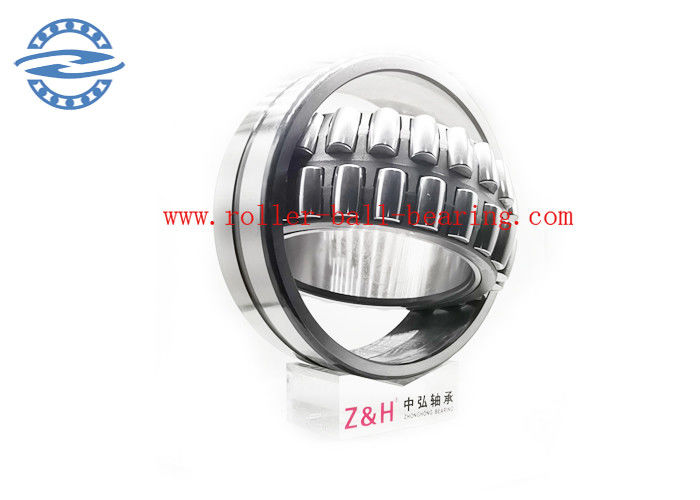

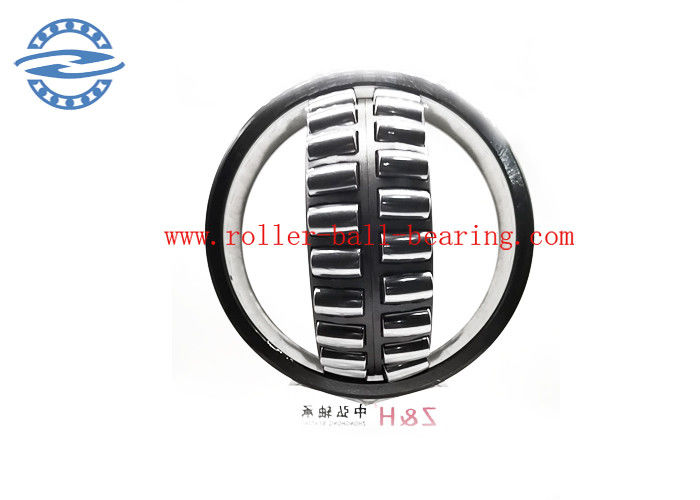

130x200x52mm 23026CC CA CCK Sferische Rollagers 23026 Lager
Productspecificatiegraafmachine
| Lagernummer |
23026 CC |
| Materiaal |
Chroomstaal |
| Boring maat |
130,00MM |
| Buitendiameter |
200,00MM |
| Dikte |
52,00MM |
| Gewicht |
6,1 kg |
| Dynamische belastingswaarde |
336000 N |
| Statische belasting |
292000 N |
| Snelheidsbegrenzingsvet |
1500 tpm |
| Snelheidsbeperkende olie |
2080 tpm |
Gerelateerde modellen met sferische rollagers
| Lager nr. |
Grensafmetingen |
Basisbelastingsclassificaties (kN) |
Snelheid beperken |
Massa |
| mm |
Dynamisch |
Statisch |
toerental |
kg |
| D |
D |
B |
rs min |
Cr |
Cor |
Vet |
Olie |
|
| 22205 |
25 |
52 |
18 |
1 |
36,5 |
36 |
6.500 |
10.000 |
0,186 |
| 22205K |
25 |
52 |
18 |
1 |
36,5 |
36 |
6.500 |
10.000 |
0,182 |
| 22205KW33C3 |
25 |
52 |
18 |
1 |
36,5 |
36 |
6.500 |
10.000 |
0,182 |
| 22205W33C3 |
25 |
52 |
18 |
1 |
36,5 |
36 |
6.500 |
10.000 |
0,186 |
| 22206 |
30 |
62 |
20 |
1 |
49 |
49 |
5.700 |
8.800 |
0,287 |
| 22206K |
30 |
62 |
20 |
1 |
49 |
49 |
5.700 |
8.800 |
0,282 |
| 22206KW33C3 |
30 |
62 |
20 |
1 |
49 |
49 |
5.700 |
8.800 |
0,282 |
| 22206W33C3 |
30 |
62 |
20 |
1 |
49 |
49 |
5.700 |
8.800 |
0,287 |
| 22207 |
35 |
72 |
23 |
1.1 |
69,5 |
71 |
4.900 |
7.500 |
0,446 |
| 22207K |
35 |
72 |
23 |
1.1 |
69,5 |
71 |
4.900 |
7.500 |
0,437 |
| 22207KW33C3 |
35 |
72 |
23 |
1.1 |
69,5 |
71 |
4.900 |
7.500 |
0,437 |
| 22207W33C3 |
35 |
72 |
23 |
1.1 |
69,5 |
71 |
4.900 |
7.500 |
0,446 |
| 22208 |
40 |
80 |
23 |
1.1 |
79 |
88,5 |
4.300 |
6.600 |
0,526 |
| 22208K |
40 |
80 |
23 |
1.1 |
79 |
88,5 |
4.300 |
6.600 |
0,515 |
| 22208KW33C3 |
40 |
80 |
23 |
1.1 |
79 |
88,5 |
4.300 |
6.600 |
0,515 |
| 22208W33C3 |
40 |
80 |
23 |
1.1 |
79 |
88,5 |
4.300 |
6.600 |
0,526 |
| 22209 |
45 |
85 |
23 |
1.1 |
82,5 |
95 |
3.800 |
5.900 |
0,584 |
| 22209K |
45 |
85 |
23 |
1.1 |
82,5 |
95 |
3.800 |
5.900 |
0,572 |
| 22209KW33C3 |
45 |
85 |
23 |
1.1 |
82,5 |
95 |
3.800 |
5.900 |
0,572 |
| 22209W33C3 |
45 |
85 |
23 |
1.1 |
82,5 |
95 |
3.800 |
5.900 |
0,584 |
| 22210 |
50 |
90 |
23 |
1.1 |
86 |
102 |
3.500 |
5.300 |
0,63 |
| 22210K |
50 |
90 |
23 |
1.1 |
86 |
102 |
3.500 |
5.300 |
0,616 |
| 22210KW33C3 |
50 |
90 |
23 |
1.1 |
86 |
102 |
3.500 |
5.300 |
0,616 |
| 22210W33C3 |
50 |
90 |
23 |
1.1 |
86 |
102 |
3.500 |
5.300 |
0,63 |
| 22211 |
55 |
100 |
25 |
1.5 |
118 |
144 |
3.200 |
4.900 |
0,808 |
| 22211K |
55 |
100 |
25 |
1.5 |
118 |
144 |
3.200 |
4.900 |
0,79 |
| 22211KW33C3 |
55 |
100 |
25 |
1.5 |
93,5 |
110 |
3.200 |
4.200 |
0,832 |
| 22211W33C3 |
55 |
100 |
25 |
1.5 |
118 |
144 |
3.200 |
4.900 |
0,808 |
| 22212 |
60 |
110 |
28 |
1.5 |
115 |
147 |
2.900 |
4.500 |
1.15 |
| 22212K |
60 |
110 |
28 |
1.5 |
115 |
147 |
2.900 |
4.500 |
1.13 |
| 22212KW33C3 |
60 |
110 |
28 |
1.5 |
115 |
147 |
2.900 |
4.500 |
1.13 |
| 22212W33C3 |
60 |
110 |
28 |
1.5 |
115 |
147 |
2.900 |
4.500 |
1.15 |
| 22213 |
65 |
120 |
31 |
1.5 |
143 |
179 |
2.700 |
4.200 |
1.5 |
| 22213K |
65 |
120 |
31 |
1.5 |
143 |
179 |
2.700 |
4.200 |
1.47 |
| 22213KW33C3 |
65 |
120 |
31 |
1.5 |
143 |
179 |
2.700 |
4.200 |
1.47 |
| 22213W33C3 |
65 |
120 |
31 |
1.5 |
143 |
179 |
2.700 |
4.200 |
1.5 |
| 22214 |
70 |
125 |
31 |
1.5 |
154 |
201 |
2.500 |
3.900 |
1,55 |
| 22214K |
70 |
125 |
31 |
1.5 |
154 |
201 |
2.500 |
3.900 |
1,52 |
| 22214KW33C3 |
70 |
125 |
31 |
1.5 |
154 |
201 |
2.500 |
3.900 |
1,52 |
| 22214W33C3 |
70 |
125 |
31 |
1.5 |
154 |
201 |
2.500 |
3.900 |
1,55 |
| 22215 |
75 |
130 |
31 |
1.5 |
166 |
223 |
2.300 |
3.600 |
1,65 |
| 22215K |
75 |
130 |
31 |
1.5 |
166 |
223 |
2.300 |
3.600 |
1,61 |
| 22215KW33C3 |
75 |
130 |
31 |
1.5 |
166 |
223 |
2.300 |
3.600 |
1,61 |
| 22215W33C3 |
75 |
130 |
31 |
1.5 |
166 |
223 |
2.300 |
3.600 |
1,65 |
| 22216 |
80 |
140 |
33 |
2 |
213 |
277 |
2.200 |
3.400 |
1,99 |
| 22216K |
80 |
140 |
33 |
2 |
213 |
277 |
2.200 |
3.400 |
1,94 |
| 22216KW33C3 |
80 |
140 |
33 |
2 |
213 |
277 |
2.200 |
3.400 |
1,94 |
| 22216W33C3 |
80 |
140 |
33 |
2 |
213 |
277 |
2.200 |
3.400 |
1,99 |
| 22217 |
85 |
150 |
36 |
2 |
251 |
320 |
2.100 |
3.200 |
2.49 |
| 22217K |
85 |
150 |
36 |
2 |
251 |
320 |
2.100 |
3.200 |
2.43 |
| 22217KW33C3 |
85 |
150 |
36 |
2 |
251 |
320 |
2.100 |
3.200 |
2.43 |
| 22217W33C3 |
85 |
150 |
36 |
2 |
251 |
320 |
2.100 |
3.200 |
2.49 |
| 22218 |
90 |
160 |
40 |
2 |
292 |
385 |
1.900 |
3.000 |
3.24 |
| 22218K |
90 |
160 |
40 |
2 |
292 |
385 |
1.900 |
3.000 |
3.16 |
| 22218KW33C3 |
90 |
160 |
40 |
2 |
292 |
385 |
1.900 |
3.000 |
3.16 |
| 22218W33C3 |
90 |
160 |
40 |
2 |
292 |
385 |
1.900 |
3.000 |
3.24 |
| 22219 |
95 |
170 |
43 |
2.1 |
294 |
390 |
1.800 |
2.800 |
4.1 |
| 22219K |
95 |
170 |
43 |
2.1 |
294 |
390 |
1.800 |
2.800 |
4.01 |
| 22219KW33C3 |
95 |
170 |
43 |
2.1 |
294 |
390 |
1.800 |
2.800 |
4.01 |
| 22219W33C3 |
95 |
170 |
43 |
2.1 |
294 |
390 |
1.800 |
2.800 |
4.1 |
| 22220 |
100 |
180 |
46 |
2.1 |
315 |
415 |
1.700 |
2.700 |
4,95 |
| 22220K |
100 |
180 |
46 |
2.1 |
315 |
415 |
1.700 |
2.700 |
4,84 |
| 22220KW33C3 |
100 |
180 |
46 |
2.1 |
315 |
415 |
1.700 |
2.700 |
4,84 |
| 22220W33C3 |
100 |
180 |
46 |
2.1 |
315 |
415 |
1.700 |
2.700 |
4,95 |
| 22222 |
110 |
200 |
53 |
2.1 |
410 |
570 |
1.600 |
2.400 |
7.2 |
| 22222K |
110 |
200 |
53 |
2.1 |
410 |
570 |
1.600 |
2.400 |
7.04 |
| 22222KW33C3 |
110 |
200 |
53 |
2.1 |
410 |
570 |
1.600 |
2.400 |
7.04 |
| 22222W33C3 |
110 |
200 |
53 |
2.1 |
410 |
570 |
1.600 |
2.400 |
7.2 |
| 22224 |
120 |
215 |
58 |
2.1 |
485 |
700 |
1.400 |
2.200 |
9.1 |
| 22224K |
120 |
215 |
58 |
2.1 |
485 |
700 |
1.400 |
2.200 |
8.89 |
| 22224KW33C3 |
120 |
215 |
58 |
2.1 |
485 |
700 |
1.400 |
2.200 |
8.89 |
| 22224W33C3 |
120 |
215 |
58 |
2.1 |
485 |
700 |
1.400 |
2.200 |
9.1 |
| 22226 |
130 |
230 |
64 |
3 |
570 |
790 |
1.300 |
2.000 |
11.2 |
| 22226K |
130 |
230 |
64 |
3 |
570 |
790 |
1.300 |
2.000 |
10.9 |
| 22226KW33C3 |
130 |
230 |
64 |
3 |
570 |
790 |
1.300 |
2.000 |
10.9 |
| 22226W33C3 |
130 |
230 |
64 |
3 |
570 |
790 |
1.300 |
2.000 |
11.2 |
| 22228 |
140 |
250 |
68 |
3 |
685 |
975 |
1.200 |
1.900 |
14 |
| 22228K |
140 |
250 |
68 |
3 |
685 |
975 |
1.200 |
1.900 |
13.7 |
| 22228KW33C3 |
140 |
250 |
68 |
3 |
685 |
975 |
1.200 |
1.900 |
13.7 |
| 22228W33C3 |
140 |
250 |
68 |
3 |
685 |
975 |
1.200 |
1.900 |
14 |
| 22230 |
150 |
270 |
73 |
3 |
775 |
1.160 |
1.100 |
1.700 |
18.1 |
| 22230K |
150 |
270 |
73 |
3 |
775 |
1.160 |
1.100 |
1.700 |
17.7 |
| 22230KW33C3 |
150 |
270 |
73 |
3 |
775 |
1.160 |
1.100 |
1.700 |
17.7 |
| 22230W33C3 |
150 |
270 |
73 |
3 |
775 |
1.160 |
1.100 |
1.700 |
18.1 |
| 22232 |
160 |
290 |
80 |
3 |
870 |
1.290 |
1.000 |
1.600 |
22.7 |
| 22232K |
160 |
290 |
80 |
3 |
870 |
1.290 |
1.000 |
1.600 |
22.2 |
| 22232KW33C3 |
160 |
290 |
80 |
3 |
870 |
1.290 |
1.000 |
1.600 |
22.2 |
| 22232W33C3 |
160 |
290 |
80 |
3 |
870 |
1.290 |
1.000 |
1.600 |
22.7 |
| 22234 |
170 |
310 |
86 |
4 |
1.000 |
1.520 |
980 |
1.500 |
28 |
| 22234K |
170 |
310 |
86 |
4 |
1.000 |
1.520 |
980 |
1.500 |
27.3 |
| 22234KW33C3 |
170 |
310 |
86 |
4 |
1.000 |
1.520 |
980 |
1.500 |
27.3 |
| 22234W33C3 |
170 |
310 |
86 |
4 |
1.000 |
1.520 |
980 |
1.500 |
28 |
| 22236 |
180 |
320 |
86 |
4 |
1.040 |
1.610 |
920 |
1.400 |
29.3 |
| 22236K |
180 |
320 |
86 |
4 |
1.040 |
1.610 |
920 |
1.400 |
28.6 |
| 22236KW33C3 |
180 |
320 |
86 |
4 |
1.040 |
1.610 |
920 |
1.400 |
28.6 |
| 22236W33C3 |
180 |
320 |
86 |
4 |
1.040 |
1.610 |
920 |
1.400 |
29.3 |
| 22238 |
190 |
340 |
92 |
4 |
1.160 |
1.810 |
860 |
1.300 |
36,6 |
| 22238K |
190 |
340 |
92 |
4 |
1.160 |
1.810 |
860 |
1.300 |
35,8 |
| 22238KW33C3 |
190 |
340 |
92 |
4 |
1.160 |
1.810 |
860 |
1.300 |
35,8 |
| 22238W33C3 |
190 |
340 |
92 |
4 |
1.160 |
1.810 |
860 |
1.300 |
36,6 |
| 22240 |
200 |
360 |
98 |
4 |
1.310 |
2.010 |
820 |
1.300 |
44 |
| 22240K |
200 |
360 |
98 |
4 |
1.310 |
2.010 |
820 |
1.300 |
43 |
| 22240KW33C3 |
200 |
360 |
98 |
4 |
1.310 |
2.010 |
820 |
1.300 |
43 |
| 22240W33C3 |
200 |
360 |
98 |
4 |
1.310 |
2.010 |
820 |
1.300 |
44 |
| 22244 |
220 |
400 |
108 |
4 |
1.580 |
2.460 |
730 |
1.100 |
60,4 |
| 22244K |
220 |
400 |
108 |
4 |
1.580 |
2.460 |
730 |
1.100 |
59.1 |
| 22244KW33C3 |
220 |
400 |
108 |
4 |
1.580 |
2.460 |
730 |
1.100 |
59.1 |
| 22244W33C3 |
220 |
400 |
108 |
4 |
1.580 |
2.460 |
730 |
1.100 |
60,4 |
| 22248 |
240 |
440 |
120 |
4 |
1.940 |
3.100 |
660 |
1.000 |
81,7 |
| 22248K |
240 |
440 |
120 |
4 |
1.940 |
3.100 |
660 |
1.000 |
80 |
| 22248KW33C3 |
240 |
440 |
120 |
4 |
1.940 |
3.100 |
660 |
1.000 |
80 |
| 22248W33C3 |
240 |
440 |
120 |
4 |
1.940 |
3.100 |
660 |
1.000 |
81,7 |
| 22252 |
260 |
480 |
130 |
5 |
2.230 |
3.600 |
610 |
930 |
106 |
| 22252K |
260 |
480 |
130 |
5 |
2.230 |
3.600 |
610 |
930 |
104 |
| 22252KW33C3 |
260 |
480 |
130 |
5 |
2.230 |
3.600 |
610 |
930 |
104 |
| 22252W33C3 |
260 |
480 |
130 |
5 |
2.230 |
3.600 |
610 |
930 |
106 |
| 22256 |
280 |
500 |
130 |
5 |
2.310 |
3.800 |
560 |
860 |
112 |
| 22256K |
280 |
500 |
130 |
5 |
2.310 |
3.800 |
560 |
860 |
110 |
| 22256KW33C3 |
280 |
500 |
130 |
5 |
2.310 |
3.800 |
560 |
860 |
110 |
| 22256W33C3 |
280 |
500 |
130 |
5 |
2.310 |
3.800 |
560 |
860 |
112 |
| 22260 |
300 |
540 |
140 |
5 |
2.670 |
4.350 |
510 |
790 |
141 |
| 22260K |
300 |
540 |
140 |
5 |
2.670 |
4.350 |
510 |
790 |
138 |
| 22260KW33C3 |
300 |
540 |
140 |
5 |
2.670 |
4.350 |
510 |
790 |
138 |
| 22260W33C3 |
300 |
540 |
140 |
5 |
2.670 |
4.350 |
510 |
790 |
141 |
|
2638
|
22322
|
23044
|
232/560
|
239/500
|
24026
|
24172K30
|
231/630
|
|
21310
|
22324
|
23048
|
232/600
|
239/530
|
24028
|
24176
|
231/670
|
|
21311
|
22326
|
23052
|
232/750
|
239/560
|
24030
|
24180
|
231/850
|
|
21312
|
22328
|
23056
|
232/850
|
239/600
|
24032
|
24184
|
232/670
|
|
21313
|
22330
|
23060
|
23218
|
239/630
|
24034
|
24188
|
238/1000
|
|
21314
|
22332
|
23064
|
23220
|
239/670
|
24036
|
24192
|
238/1060
|
|
21315
|
22334
|
23068
|
23222
|
239/695
|
24038
|
24196
|
238/1180
|
|
21316
|
22336
|
23072
|
23224
|
239/699
|
24040
|
3738
|
238/530
|
|
21317
|
22338
|
23076
|
23226
|
239/700
|
24044
|
3844
|
238/560
|
|
21318
|
22340
|
23080
|
23228
|
239/710
|
24048
|
4G3734
|
238/630
|
|
21319
|
22344
|
23084
|
23230
|
239/750
|
24052
|
2680
|
238/670
|
|
21320
|
22348
|
23088
|
23232
|
239/800
|
24056
|
3880
|
238/850
|
|
21321
|
22352
|
23092
|
23234
|
239/850
|
24060
|
21324
|
238/900
|
|
21322
|
22356
|
23096
|
23236
|
239/895
|
24064
|
22215
|
239/1060
|
|
22212
|
22360
|
231/500
|
23238
|
239/900
|
24068
|
22217
|
239/950
|
|
22213
|
22364
|
231/530
|
23240
|
23932
|
24072
|
22220
|
240/1000
|
|
22214
|
22368
|
231/560
|
23244
|
23934
|
24084
|
22276
|
240/1060
|
|
22216
|
22372
|
23120
|
23248
|
23936
|
24088
|
22318
|
240/1120
|
|
22218
|
22376
|
23121
|
23252
|
23938
|
24092
|
23126
|
240/800
|
|
22219
|
22380
|
23122
|
23256
|
23940
|
24096
|
23184
|
240/850
|
|
22222
|
230/1000
|
23122N
|
23260
|
23944
|
241/500
|
23284
|
240/900
|
|
22224
|
230/1180
|
23124
|
23264
|
23948
|
241/560
|
23856
|
240/950
|
|
22226
|
230/1200
|
23124N
|
23268
|
23952
|
241/600
|
23860
|
241/530
|
|
22228
|
230/500
|
23128
|
23272
|
23956
|
241/600K30
|
23864
|
241/670
|
|
22230
|
230/530
|
23130
|
23276
|
23960
|
241/630
|
23868
|
241/710
|
|
22232
|
230/560
|
23132
|
23280
|
23964
|
241/750
|
23872
|
241/800
|
|
22234
|
230/600
|
23134
|
23288
|
23968
|
24120
|
23876
|
248/1060
|
|
22236
|
230/630
|
23136
|
23292
|
23972
|
24122
|
23880
|
248/1320
|
|
22238
|
230/695
|
23138
|
23296
|
23980
|
24124
|
23884
|
248/1500
|
|
22240
|
230/750
|
23140
|
23320
|
23984
|
24126
|
23888
|
248/1800
|
|
22244
|
230/800
|
23144
|
23322
|
23988
|
24128
|
23892
|
248/750
|
|
22248
|
230/850
|
23148
|
23324
|
23992
|
24130
|
23896
|
248/800
|
|
22252
|
230/900
|
23152
|
23326
|
23996
|
24132
|
23928
|
248/900
|
|
22256
|
230/950
|
23156
|
23328
|
240/500
|
24134
|
23930
|
249/1000
|
|
22260
|
23020
|
23160
|
23330
|
240/530
|
24136
|
23976
|
249/1060
|
|
22264
|
23022
|
23164
|
23332
|
240/560
|
24138
|
24076
|
249/1120
|
|
22268
|
23024
|
23168
|
23334
|
240/600
|
24140
|
24080
|
249/1180
|
|
22272
|
23026
|
23172
|
23338
|
240/630
|
24144
|
230/1060
|
249/1320
|
|
22280
|
23028
|
23176
|
23340
|
240/670
|
24148
|
230/1250
|
249/1500
|
|
22314
|
23030
|
23180
|
23344
|
240/710
|
24152
|
230/670
|
249/710
|
|
22315
|
23032
|
23188
|
23348
|
240/750
|
24156
|
230/700
|
249/800
|
|
22316
|
23034
|
23192
|
239/1000
|
24018
|
24160
|
230/710
|
249/900
|
|
22317
|
23036
|
23196
|
239/1020
|
24020
|
24164
|
231/1000
|
249/950
|
|
22319
|
23038
|
232/500
|
239/1180
|
24022
|
24168
|
231/339
|
260/1000
|
|
22320
|
23040
|
232/530
|
239/1400
|
24024
|
24172
|
231/600
|
Anderen
|
| Artikelnr. |
D |
D |
B |
22205CA~22226CA |
25 mm ~ 130 mm |
52 mm ~ 230 mm |
18 mm ~ 64 mm |
22205CC~22226CC |
25 mm ~ 130 mm |
52 mm ~ 230 mm |
18 mm ~ 64 mm |
22308CA~22322CA |
40 mm ~ 110 mm |
90 mm ~ 240 mm |
33 mm ~ 80 mm |
22308CC~22322CC |
40 mm ~ 110 mm |
90 mm ~ 240 mm |
33 mm ~ 80 mm |
22230CA/W33~22256CA/W33 |
50 mm ~ 280 mm |
270 mm ~ 500 mm |
73 mm ~ 130 mm |
22328CA/W33~22352CA/W33 |
140 mm ~ 260 mm |
300 mm ~ 540 mm |
102 mm ~ 165 mm |
23022CA/W33~23092CA/W33 |
110 mm ~ 460 mm |
170 mm ~ 680 mm |
45 mm ~ 163 mm |
23132CA/W33~23164CA/W3 |
160 mm ~ 320 mm |
270 mm ~ 540 mm |
86mm~176mm |
24124CA/W33~24156CA/W33 |
120 mm ~ 280 mm |
200 mm ~ 460 mm |
80 mm ~ 180 mm |
23222CA/W33~23234CA/W33 |
110 mm ~ 170 mm |
200 mm ~ 310 mm |
69,8 mm ~ 110 mm |
24026CA/W33~24052CA/W33 |
130 mm ~ 260 mm |
200 mm ~ 400 mm |
69 mm ~ 140 mm |
|
|
|
|
|
|
|
|
|
|
|
21306CA/C3W33
|
30
|
72
|
19
|
0,412
|
|
21307CA/C3W33
|
35
|
80
|
21
|
0,542
|
|
21308CA/C3W33
|
40
|
90
|
23
|
0,743
|
|
21309CA/C3W33
|
45
|
100
|
25
|
1
|
|
21310CA/C3W33
|
50
|
110
|
27
|
1.3
|
|
21311CA/C3W33
|
55
|
120
|
29
|
1,65
|
|
21312CA/C3W33
|
60
|
130
|
31
|
2.08
|
|
21313CA/C3W33
|
65
|
140
|
33
|
2.57
|
|
21314CA/C3W33
|
70
|
150
|
35
|
3.11
|
|
21315CA/C3W33
|
75
|
160
|
37
|
3,76
|
|
21316CA/C3W33
|
80
|
170
|
39
|
4.47
|
|
21322CA/C3W33
|
110
|
240
|
50
|
11.8
|
|
23024CA/C3W33
|
120
|
180
|
46
|
3,98
|
|
23026CA/C3W33
|
130
|
200
|
52
|
5,85
|
|
23028CA/C3W33
|
140
|
210
|
53
|
6.31
|
|
23030CA/C3W33
|
150
|
225
|
56
|
7,74
|
|
23032CA/C3W33
|
160
|
240
|
60
|
9.43
|
|
23034CA/C3W33
|
170
|
260
|
67
|
12.8
|
|
23036CA/C3W33
|
180
|
280
|
74
|
16.9
|
|
23038CA/C3W33
|
190
|
290
|
75
|
17.7
|
|
23040CA/C3W33
|
200
|
310
|
82
|
22.7
|
|
23044CA/C3W33
|
220
|
340
|
90
|
29.7
|
|
23048CA/C3W33
|
240
|
360
|
92
|
32.4
|
|
24024CA/C3W33
|
120
|
180
|
60
|
5.05
|
|
24026CA/C3W33
|
130
|
200
|
69
|
7.55
|
|
24028CA/C3W33
|
140
|
210
|
69
|
8.01
|
|
24030CA/C3W33
|
150
|
225
|
75
|
10.1
|
|
24032CA/C3W33
|
160
|
240
|
80
|
12.2
|
|
24034CA/C3W33
|
170
|
260
|
90
|
16.7
|
|
24036CA/C3W33
|
180
|
280
|
100
|
22.1
|
|
24038CA/C3W33
|
190
|
290
|
100
|
23
|
|
24040CA/C3W33
|
200
|
310
|
109
|
29.3
|
|
24044CA/C3W33
|
220
|
340
|
118
|
38.1
|
|
24048CA/C3W33
|
240
|
360
|
118
|
40,8
|
BEDRIJFSPROFIEL
ZhongHong Bearing Manufacturing Co. Ltd is een lagerproductie-, verkoopgericht bedrijf,
Het bedrijf in de industriële sector heeft vele jaren ervaring met ondersteunende en industriële dienstverlening.
Betrokken typen: diepgroefkogellagers, gewrichtslagers, conische lagers, cilindrische lagers enzovoort. Onze producten worden veel gebruikt in werktuigmachines,
kolenmijn, spoorwegen, aardoliedruk, elektriciteitscentrales, schepen, luchtvaart, auto- en andere industrieën
WERKPLAATS
Veelgestelde vragen
Q1.Wat is uw voordeel? Waarom wij voor jou kiezen?
A: 1) Meer dan 10 jaar ervaring met lagerproductie en R&D. We hebben de meest professionele technieken en het meest professionele team. Meer voordeel in prijs.
2) Grote productiecapaciteit Duurzame levering. Volgens de eisen van de klant ondersteunen wij het op maat gemaakte inclusief pakket.
3) We gebruiken 100% nieuwe materialen en het beste productieproces, als gevolg daarvan is ons defectpercentage lager dan 0,01%.
Vraag 2. Bent u een fabriek of handelsonderneming?
A: Wij zijn een professionele fabrikant. Wij zijn van harte welkom klanten van over de hele wereld om onze fabriek te bezoeken en met ons samen te werken.
Onze voordelen:
1. Meer dan tien jaar met producten die ervaringen exporteren.
2. OEM-bestelling en niet-standaard lagerbestelling kunnen worden geaccepteerd.
3. Er zijn vele maten lagers beschikbaar. Grote hoeveelheden lagers kunnen in orde zijn.
Ashley
Zakelijk telefoonnummer: +8618906444006
WhatsApp: +8618906444006
WeChat: +8618906444006
E-mail: gzzhbearing@163.com
Uw bericht moet tussen de 20-3.000 tekens bevatten!
english
français
Deutsch
Italiano
Русский
Español
português
Nederlandse
ελληνικά
日本語
한국
العربية
हिन्दी
Türkçe
indonesia
tiếng Việt
ไทย
বাংলা
فارسی
polski
